Commercial UPS

EON RT 11 Series

Online Uninterruptable Power Supply

Single Phase Tower Type Uninteruptable Power Supply

Online Double Conversion
In-Built Battery
1:1 Phase
Up to 10kVA
Rack/Tower Convertible

ENCLOVE Energy's EON RT 11 Series delivers elite 1:1 online double-conversion protection within a highly versatile, convertible Rack/Tower chassis. Designed for seamless integration into either standard 19-inch IT racks or standalone floor environments, it provides laboratory-grade power isolation for critical networking and industrial control systems. This series ensures uncompromising uptime by regenerating a continuous pure sine wave, regardless of the input power quality.

Request a quote Datasheet PDF, 0.9 MB

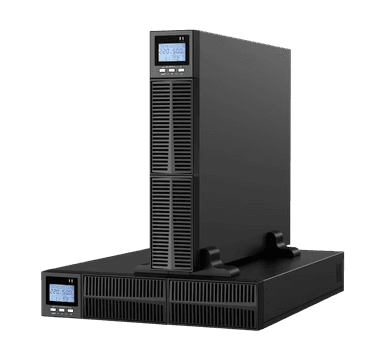

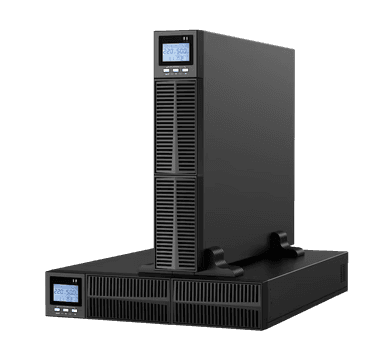

EON RT 11 Series UPS shown in both orientations, standing upright as a tower on its stand and lying flat as a 19-inch rack mount unit, each with an LCD control panel

Input Voltage Range: 110-300V
Transfer Time: 0ms, Mains to Battery
Efficiency: ≥ %98ECO Mode (6 and 10kVA)
Input Power Factor: ≥ 0,99all models

Product Overview

EON RT 11 Series delivers reliable and efficient power protection for critical applications, PCs and Servers from 1 kVA to 10 kVA. Featuring online double conversion with advanced DSP control, high power density, and up to 92% in Line Mode and 97% in ECO mode efficiency, it ensures stable, clean power even under challenging conditions.

Designed for offices, commercial centers, medical equipment the EON RT 11 Series offers intelligent battery management, frequency converter mode (50/60Hz) and wide range of control and monitoring options. Compact, quiet, and built for long time operation, it combines cutting-edge technology with user-friendly design to keep your operations running without interruption. Specific 19' Rack Mounting will ensure this unit will fit right into your server cabinets. **Mounting pieces will be included in the unit.

Technical Highlights

Digital signal processing technology
Input power factor correction (PFC)
Short circuit and over current protection
Wide input voltage range (110-300V)
Smart fan system sensitive to load percentage
Rack to tower convertible
Advanced battery management
USB/SNMP/AS400/ModBus communication optionally available

FLEXIBLE BATTERY CONFIGURATION

IN-BUILT AND EXTERNAL BATTERY CONFIGS ALLOW FLEX BACKUP TIMES
HIGH POWER DENSITY

COMPACT UNITS ENSURES TO STORE IT IN ANY LOCATION
RACK/TOWER CONVERTIBLE

RACK/TOWER CONVERSION ALLOWS DIFFERENT MOUNTING APPLICATIONS
REPLACABLE BATTERY PACKS

CONTAINS BATTERY PACKS FOR EASY REPLACEMENT & REFURBISHMENT

Key features

Three Level Technology

High Efficiency

ECO Mode

for High Energy Efficiency

Cold Start

(Start from Battery without Mains)

Output Power Factor: 0.9

(1.0 for 6 and 10kVA)

Parallel Operation (N+X)

(for 6 and 10kVA)

2 Years Warranty

10 Years Spare Parts Warranty

Technical specifications

The table below reproduces the EON RT 11 Series specifications from the manufacturer datasheet, covering all ten models from EON1101RT-S at 1kVA/0.9kW to EON1110RT-L at 10kVA/10kW.

EON1101RT-S

POWER (kVA/kW)
1kVA/0.9kW

Enquire
EON1101RT-L

POWER (kVA/kW)
1kVA/0.9kW

Enquire
EON1102RT-S

POWER (kVA/kW)
2kVA/1.8kW

Enquire
EON1102RT-L

POWER (kVA/kW)
2kVA/1.8kW

Enquire
EON1103RT-S

POWER (kVA/kW)
3kVA/2.7kW

Enquire
EON1103RT-L

POWER (kVA/kW)
3kVA/2.7kW

Enquire
EON1106RT-S

POWER (kVA/kW)
6kVA/6kW

Enquire
EON1106RT-L

POWER (kVA/kW)
6kVA/6kW

Enquire
EON1110RT-S

POWER (kVA/kW)
10kVA/10kW

Enquire
EON1110RT-L

POWER (kVA/kW)
10kVA/10kW

Enquire

EON RT 11 Series technical specifications, compared across 10 models.
Model	EON1101RT-S	EON1101RT-L	EON1102RT-S	EON1102RT-L	EON1103RT-S	EON1103RT-L	EON1106RT-S	EON1106RT-L	EON1110RT-S	EON1110RT-L
POWER (kVA/kW)	1kVA/0.9kW		2kVA/1.8kW		3kVA/2.7kW		6kVA/6kW		10kVA/10kW
INPUT
Voltage	208 / 220 / 230 / 240 VAC
Voltage Range	176~280VAC 110~176VAC (50%-100% linear derate) / 280~300VAC (50% derate
Frequency	40~70Hz (Auto Sensing)
Input Power Factor	≥ 0,99
Total Harmonic Distortion (THDi)	≤ 6%						≤ 5%
Bypass Voltage Range	-25%～+15% (LCD Panel Selectable)						-40%～+15% (LCD Panel Selectable)
OUTPUT
Voltage	208 / 220 / 230 / 240 VAC (LCD Panel Selectable)
Voltage Regulation	±%1 (Lineer Load)
Frequency	45 ~ 55 Hz or 55 ~ 65 Hz (in Sync); 50 / 60 Hz ±0.1 Hz (Battery Mode)
Waveform	Pure Sine Wave
Output Power Factor	0.9						1.0
Crest Factor	3:1
Total Harmonic Distortion (THDu)	Lineer Load ≤ %2 / Non Lineer Load ≤ %5						Lineer Load ≤ %1 / Non Lineer Load ≤ %4
Transfer Time	Mains to Battery: 0ms Inverter to Bypass: 4ms
Overload Characteristics	105% - 125% load - 1 mins (then Bypass) 125% - 150% Load - 30 secs (then Bypass) >150% Load - 300ms (then Bypass)						105% - 110% load - 10 mins (then Bypass) 110% - 125% Load - 1 min (then Bypass) 125% - 150% Load - 30 sec (then Bypass)
Efficiency	Mains: ≥ %91 Battery: ≥ %85 ECO Mode: ≥ %95		Mains: ≥ %91 Battery: ≥ %86 ECO Mode: ≥ %96		Mains: ≥ %92 Battery: ≥ %87 ECO Mode: ≥ %97		Mains: ≥ %94,5 ECO Mode: ≥ %98
BATTERY
Battery Voltage	24VDC		48VDC		72VDC		192 - 240VDC (16 or 20 Battery Selectable) (192VDC Standard Models)
Battery Quantity / Model	2 x 7Ah		4 x 7Ah		6 x 7Ah		16 x 7 Ah	16 to 20 blocks	16 x 9 Ah	16 to 20 blocks
Battery Charger Current	1 Amp (S Models) / 6A (L Models)						1 Amp (S Models) / 5A (L Models) (12A Optional)
Battery Re-Charge Time	90% Capacity @ 8 Hours
BATTERY
Audible Alarms	Mains Failure, Battery Low, Battery Too Low, Over Load, General Fault
Protection	Short Circuit, Over Load, Over Temperature, Battery Deep Discharge, Fan Test
ENVIRONMENTS & STANDARDS
Operation Temperature	0 ˚C- 40 ˚C
Operation Humidity	%0 ~ %95 (Non-condesing)
Storage Temperature	-40 ˚C~ 70 ˚C
Audible Noise	<50 Db ( 1 meter away )						<55 Db ( 1 meter away )
Operation Altitude	≤1000m (without de-rate) / @1000-2000m 1% de-rate in each 100 m
Communication	Standard: RS232 / Optional: USB, SNMP
Standards	Safety: IEC 62040-1, IEC62477-1 EMC: IEC62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8
PHYSICAL PROPERTIES
Net Dimensions (WDH)	440x338x88	440x468x88	440x430x88	440x468x88	440x560x88	440x468x88	440x660x176	440x580x88	440x660x176	440x580x88
Packed Dimensions (WDH)	545x560x201	545x592x201	545x560x201	545x592x201	590x690x201	590x592x201	564x792x418	514x696x168	564x792x418	514x696x168
Net Weight (kg)	10,6	7,6	18,7	9,7	26,8	10,1	58	12	63	14
Packed Weight (kg)	11,3	11,1	21,8	13,2	29,7	13,6	68	14	73	16

* Our company has the right to change the model, visual and technical specification information of the products without prior notice.

Where the EON RT 11 Series is used

Frequently asked questions

Answers taken from the EON RT 11 Series datasheet.

What power ratings does the EON RT 11 Series rack UPS cover?

The datasheet covers ten models from 1kVA/0.9kW (EON1101RT-S / EON1101RT-L) through 2kVA/1.8kW and 3kVA/2.7kW up to 6kVA/6kW (EON1106RT-S / EON1106RT-L) and 10kVA/10kW (EON1110RT-S / EON1110RT-L).

What is the input voltage range of the EON RT 11 Series UPS?

Nominal input is 208 / 220 / 230 / 240 VAC with a range of 176~280VAC, extending to 110~176VAC (50%-100% linear derate) / 280~300VAC (50% derate). Input frequency is 40~70Hz (Auto Sensing).

How efficient is the EON RT 11 Series in line and ECO mode?

On the 1-3kVA models efficiency is Mains: ≥ %91 to ≥ %92, Battery: ≥ %85 to ≥ %87 and ECO Mode: ≥ %95 to ≥ %97. The 6 and 10kVA models reach Mains: ≥ %94,5 and ECO Mode: ≥ %98.

What are the operating temperature, humidity and altitude limits of the EON RT 11 Series?

Operation Temperature is 0 ˚C- 40 ˚C with Operation Humidity of %0 ~ %95 (Non-condesing) and Storage Temperature of -40 ˚C~ 70 ˚C. Operation Altitude is ≤1000m (without de-rate) / @1000-2000m 1% de-rate in each 100 m.

What communication ports does the EON RT 11 Series UPS provide?

Communication is Standard: RS232 / Optional: USB, SNMP. On the 1-3kVA rear panel SNMP / AS 400 and EPO are optional; the 6-10kVA rear panel additionally offers an optional parallel port and temperature sensor.

Which safety and EMC standards does the EON RT 11 Series comply with?

Safety: IEC 62040-1, IEC62477-1. EMC: IEC62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8.
