Commercial UPS

EON 33 Series

Online Uninterruptable Power Supply

3:3 Phase Tower Type Uninterruptable Power Supply

Online Double Conversion
Touch Panel LCD
3:3 Phase
Up to 200kVA
Frequency Converter Mode

ENCLOVE Energy's EON 33 Series provides high-capacity 3:3 online double-conversion protection for large-scale industrial and data center infrastructure. It delivers a perfectly stabilized three-phase output, ensuring absolute signal purity and decoupling mission-critical machinery from all utility disturbances. Engineered for modularity, the EON 33 optimizes energy efficiency while offering the $N+1$ redundancy required for total operational continuity.

Request a quote Datasheet PDF, 0.6 MB

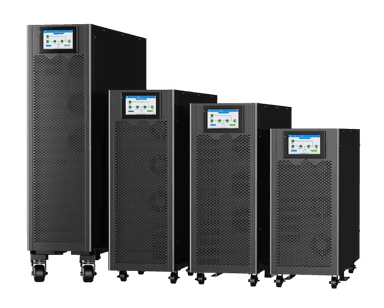

Four EON 33 Series three-phase tower UPS cabinets of descending height standing side by side, each with a colour touch panel LCD above a perforated ventilation door and castors at the base

Transfer Time: 0ms
Output Efficiency: Max. 96%
Input Voltage Range: 304~478Vac
Parallel Operation: Up to 6units (Optional)

Product Overview

EON 33 Series delivers reliable and efficient power protection for critical applications from 10 kVA to 200 kVA. Featuring online double conversion with advanced DSP control, high power density, and up to 98% ECO mode efficiency, it ensures stable, clean power even under challenging conditions.

Designed for data centers, medical equipment, and industrial use, the EON 33 Series offers intelligent battery management, flexible parallel operation (up to 6 units), and an intuitive 5-inch color touch display for seamless monitoring. Compact, quiet, and built for durability, it combines cutting-edge technology with user-friendly design to keep your operations running without interruption.

Technical Highlights

Digital signal processor controlled high frequency 3 level technology
Input power factor correction (PFC)
Up to 98% efficiency on ECO Mode
High output power factor of 1.0 (kVA = kW)
Smart fan system sensitive to load percentage
Adjustable battery quantity between 32 - 40
Self test and diagnosis mode. +500 Alarms for easy diagnosis
Split input to support split bypass source for extra redundancy

FLEXIBLE BATTERY CONFIGURATION

IN-BUILT AND EXTERNAL BATTERY CONFIGS ALLOW FLEX BACKUP TIMES
HIGH POWER DENSITY

COMPACT UNITS ENSURES TO STORE IT IN ANY LOCATION
MAXED OUT EFFICIENCY

EFFICIENCY LEVELS UP TO 98% HELPS YOU ON YOUR ENERGY SAVINGS
N+X PARALLELABLE

N+X PARALLEL CONFIGURATION WITH EXTERNAL M. BYPASS

Key features

Smart Battery Management

Automatic Equalize and flexible charge control, sleep mode control for charger, advanced design life for charger board and longer battery life time

Monitoring

RS232, USB, RS485, Dry Contact, SNMP Board, Wi-Fi Board ve GPRS Board

Digital Controlled Charge Device

(Max.10A & %20 power

Start from Battery when there is no mains

(Cold Start)

50/60 Hz (Auto-Sense)

Frequency Converter Mode

Compact Internal Layout

high power density,

Technical specifications

The table below covers the five EON 33 Series models — EON 3380, EON 33100, EON 33120, EON 33160 and EON 33200 — with all values reproduced from the product datasheet.

EON 3380

POWER (VA)
80kVA

POWER (VA)
80kW

Enquire
EON 33100

POWER (VA)
100kVA

POWER (VA)
100kW

Enquire
EON 33120

POWER (VA)
120kVA

POWER (VA)
120kW

Enquire
EON 33160

POWER (VA)
160kVA

POWER (VA)
160kW

Enquire
EON 33200

POWER (VA)
200kVA

POWER (VA)
200kW

Enquire

EON 33 Series technical specifications, compared across 5 models.
Model	EON 3380	EON 33100	EON 33120	EON 33160	EON 33200
POWER (VA)	80kVA	100kVA	120kVA	160kVA	200kVA
POWER (VA)	80kW	100kW	120kW	160kW	200kW
INPUT
Voltage	380 / 400 / 415 VAC (Ph-Ph)
Voltage Range	304~478Vac (3Φ + N + PE) / (228~304VAC De-Rated)
Frequency	50 / 60Hz Auto Sensing
Frequency Range	40-70 Hz. ± % 0,5
Input Power Factor	≥ 0,99
Total Harmonic Distortion (THDi)	≤ %5
Bypass Voltage Range	Factory Setting; -20%～+15% (LCD Panel Selectable) Lower Limit: +10/15/20/25% - Top Limit: -10/15/20/30/40% (LCD Panel Selectable)
Bypass Frequency Range	±1Hz, ±3Hz, ±5Hz (LCD Panel Selectable)
Bypass Over Load Capability	125% - Continuous 125%~130% - 10mins 130%~150% - 1 min 150%~400% - 1 sec >400% - 200ms
OUTPUT
Voltage	380 / 400 / 415 VAC (LCD Panel Selectable)
Voltage Regulation	±%1 (Lineer Load)
Frequency	Sync with Mains, Battery Operation 50 / 60 Hz. ±0,1Hz
Waveform	Pure Sine Wave
Output Power Factor	1.0
Efficiency	Max. 96%
Crest Factor	3:1
Total Harmonic Distortion (THDu)	Lineer Load ≤ %1 Non Lineer Load ≤ %3
Transfer Time	0 ms
Inverter Overload Characteristics	110% load - 60mins 110-25% Load - 10mins 125-150% Load - 1min 150% Load - >200ms
BATTERY
Battery Voltage	In-Built Battery Models: 240 VDC External Battery Models: 32-40 adet (Adjustable)
Battery Charger Current	30A	40A		60A
Charge Voltage Sensitivity	≤ %1
SYSTEM
Display	5 inch Touch Panel Display (Colored)			7 inch Touch Panel Display (Colored)
Parallel Operation	Up to 6 (Optional)
ENVIRONMENTS & STANDARDS
Operation Temperature	0 ˚C- 40 ˚C
Operation Humidity	%0 ~ %95 (Non-condesing)
Storage Temperature	-40 ˚C~ 70 ˚C
Audible Noise	<70 Db ( 1 meter away )
Operation Altitude	≤1000m (without de-rate) / @1000-2000m 1% de-rate in each 100 m
Communication	Standard: RS232, RS485, USB, Battery Cold Start Optional: Configurable Dry Contacts, SNMP, Paralel Kit
PHYSICAL PROPERTIES
Net Dimensions (WDH) - Standard	360x800x1200	360x850x1200		440x850x1250
Package Dimensions (WDH) - Standard	450x870x1370	450x940x1350		530x940x1410
Net Weight (kg)	152	156	160	194	200
Packed Weight (kg)	172	180		214	220

* Our company has the right to change the model, visual and technical specification information of the products without prior notice.

Where the EON 33 Series is used

Frequently asked questions

Answers taken from the EON 33 Series datasheet.

What power ratings does the ENCLOVE EON 33 Series UPS come in?

The EON 33 Series covers five models: EON 3380, EON 33100, EON 33120, EON 33160 and EON 33200. They are rated 80kVA, 100kVA, 120kVA, 160kVA and 200kVA, with matching ratings of 80kW, 100kW, 120kW, 160kW and 200kW.

Can the EON 33 Series UPS be paralleled for N+X redundancy?

Yes. Parallel Operation is listed as Up to 6 (Optional), and the datasheet states an N+X parallel configuration with external M. bypass.

What is the output power factor and efficiency of the EON 33 Series UPS?

Output Power Factor is 1.0 and Efficiency is Max. 96%, with up to 98% Efficiency in ECO Mode. Transfer Time is 0 ms and Total Harmonic Distortion (THDu) is Lineer Load ≤ %1, Non Lineer Load ≤ %3.

What is the operating temperature and humidity range for the EON 33 Series UPS?

Operation Temperature is 0 ˚C- 40 ˚C and Operation Humidity is %0 ~ %95 (Non-condesing); Storage Temperature is -40 ˚C~ 70 ˚C. Operation Altitude is ≤1000m (without de-rate) / @1000-2000m 1% de-rate in each 100 m, and Audible Noise is <70 Db ( 1 meter away ).

What communication and monitoring interfaces does the EON 33 Series UPS have?

Standard communication is RS232, RS485, USB, Battery Cold Start. Optional interfaces are Configurable Dry Contacts, SNMP and Paralel Kit.

What battery voltage and charger current does the EON 33 Series UPS require?

In-Built Battery Models run at 240 VDC, while External Battery Models take 32-40 adet (Adjustable). Battery Charger Current is 30A, 40A or 60A depending on the model.

Documentation & downloads

Download the latest documentation for the EON33 Series. Files are provided in their current revision; contact us if you need a previous version or a localised translation.

Product Datasheet PDF · 0.6 MB

Full technical specifications, and product features including all the options.

Download
Installation & User's Manual PDF · 4.0 MB

Step-by-step installation instructions, menu details, and operating procedures.

Download
PC & Monitoring Software PDF

Computer Program or Programs helps you to monitor or set the unit.

Request
