Selectable Output Voltage
from LCD

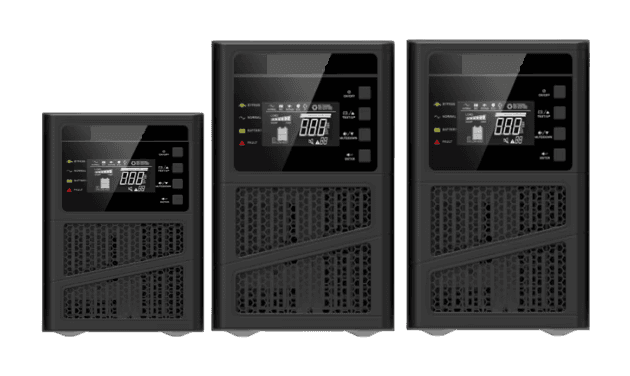

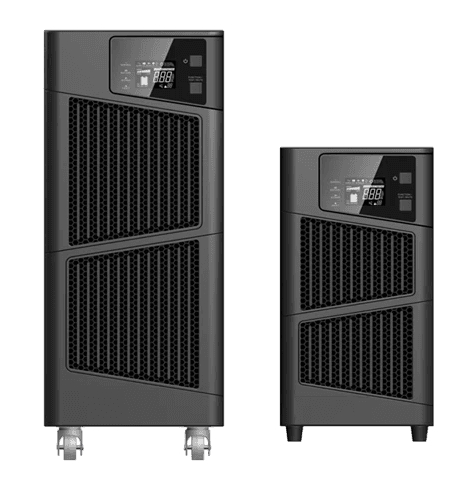

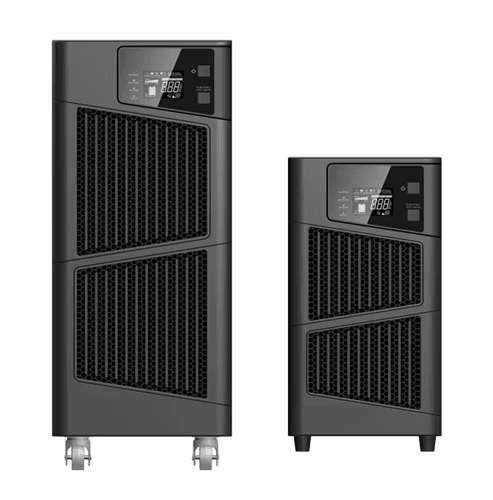

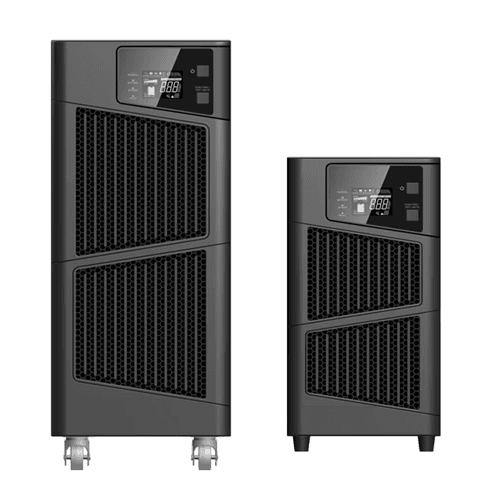

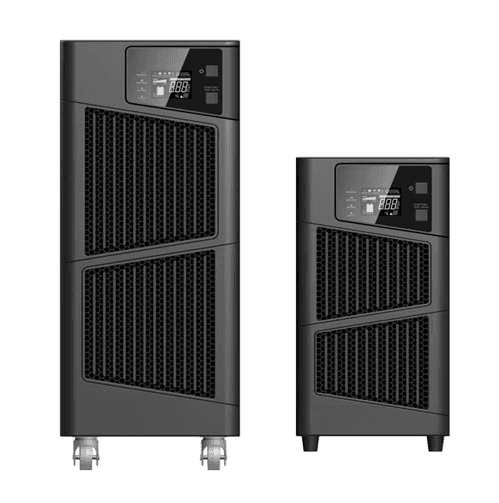

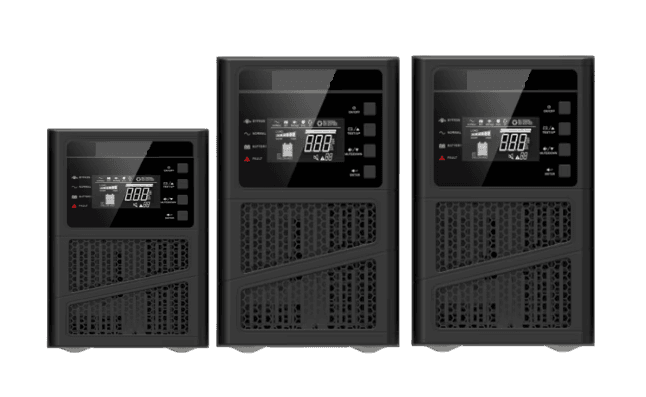

Commercial UPS
EON 11 Series
Online Uninterruptable Power Supply
Single Phase Tower Type Uninteruptable Power Supply
- Online Double Conversion
- In-Built Battery
- 1:1 Phase
- Up to 10kVA
- Extended Battery Run-Time
ENCLOVE Energy's EON 11 Series represents the pinnacle of single-phase power protection, utilizing a true online double-conversion architecture to provide absolute isolation from grid instabilities. By regenerating a continuous, laboratory-grade sine wave, this series ensures that mission-critical equipment remains entirely unaffected by voltage fluctuations, surges, or frequency shifts. Its robust tower design offers a versatile footprint, making it the ideal solution for protecting sensitive IT infrastructure, medical diagnostics, and light industrial control systems.
- Transfer Time (BAT → INV)
- 0ms
- Input Voltage Range
- 185-275VAC@ 100% Load
- Output Power Factor
- 0.9
- Audible Noise
- < 50 Db( 1 meter away )
Product Overview
EON11 Series delivers reliable and efficient power protection for critical applications, PCs and Servers from 1 kVA to 10 kVA. Featuring online double conversion with advanced DSP control, high power density, and up to 92% in Line Mode and 97% in ECO mode efficiency, it ensures stable, clean power even under challenging conditions.
Designed for offices, commercial centers, medical equipment the EON 11 Series offers intelligent battery management, frequency converter mode (50/60Hz) and wide range of control and monitoring options. Compact, quiet, and built for long time operation, it combines cutting-edge technology with user-friendly design to keep your operations running without interruption.
Technical Highlights
- Digital signal processing technology
- Input power factor correction (PFC)
- Short circuit and over current protection
- Wide input voltage range (110-300V)
- Smart fan system sensitive to load percentage
- Perfect genset suitability
- Advanced battery management
- USB/SNMP/AS400/ModBus communication optionally available
-
FLEXIBLE BATTERY CONFIGURATION
IN-BUILT AND EXTERNAL BATTERY CONFIGS ALLOW FLEX BACKUP TIMES
-
HIGH POWER DENSITY
COMPACT UNITS ENSURES TO STORE IT IN ANY LOCATION
-
FUNDAMENTALPROTECTIONS
SHORT CIRCUIT, OVER CURRENT BATTERY DISCHARGE PROTECTION
-
MAXED UP MTBF
MAXIMUM MTBF ENSURES YOUR LOADS STAYS ACTIVE FOR LONG YEARS
Key features
Auto Test function
on Start
Auto Battery Charger
in OFF Mode
Parallel Operation
up to 3 units
Extra Charger Board
(Optional)
EMC and LVD
Complied
Technical specifications
The table below reproduces the EON 11 Series datasheet specifications for the five model pairs, EON1101S/EON1101L through EON1110S/EON1110L, covering 1000VA to 10000VA.
-
EON1101S
EON1101L- POWER (VA)
- 1000VA
- POWER (VA)
- 900W
-
EON1102S
EON1102L- POWER (VA)
- 2000VA
- POWER (VA)
- 1800W
-
EON1103S
EON1103L- POWER (VA)
- 3000VA
- POWER (VA)
- 2700W
-
EON1106S
EON1106L- POWER (VA)
- 6000VA
- POWER (VA)
- 5400W
-
EON1110S
EON1110L- POWER (VA)
- 10000VA
- POWER (VA)
- 9000W
| Model | EON1101S EON1101L |
EON1102S EON1102L |
EON1103S EON1103L |
EON1106S EON1106L |
EON1110S EON1110L |
|---|---|---|---|---|---|
| POWER (VA) | 1000VA | 2000VA | 3000VA | 6000VA | 10000VA |
| POWER (VA) | 900W | 1800W | 2700W | 5400W | 9000W |
| INPUT | |||||
| Voltage | 208 / 220 / 230 / 240 VAC | ||||
| Voltage Range | 185-275VAC @ 100% Load / 120-185VAC @ 50% Load | ||||
| Frequency | 50 / 60Hz Auto Sensing | ||||
| Frequency Range | 40-70Hz (46-54Hz @ 50Hz / 56-64Hz @ 60Hz | ||||
| Input Power Factor | ≥ 0,98 | ≥ 0,99 | |||
| OUTPUT | |||||
| Voltage | 208 / 220 / 230 / 240 VAC (Selectable from LCD Panel) | ||||
| Voltage Regulation | ± % 1 | ||||
| Frequency | 50 / 60 Hz. | ||||
| Waveform | Full Sİne Wave | ||||
| Output Power Factor | 0.9 | ||||
| Crest Factor | 3:1 | ||||
| Harmonic Distortion | ≤ %2 @ Lineer / ≤ %4 @ Non Lineer Load | ≤ %2 @ Lineer / ≤ %5 @ Non Lineer Load | |||
| Transfer Time | BAT → INV = 0ms / INV → BYP = <4ms / ECOMODE BATTERY = 10ms | ||||
| Overload Capability | 1 mins @ 105%-125% Load 30 sec @ 125% - 150% Load 0,5 sec @ >150% Load |
||||
| Efficiency | INVERTER MODE: ≥ %94 ECO MODE: ≥ %98 |
||||
| BATTERY | |||||
| Battery Voltage | 24VDC (36V Opt.) | 48VDC (72V Opt.) | 72VDC (96V Opt.) | 180VDC | 192VDC |
| Battery Quantity | 2 (3 Opt.) | 4 (6 Opt.) | 6 (8 Opt.) | 15 | 16 |
| Battery Capacity | 7Ah | 9Ah | |||
| Charge Current (Standard Model) | 1A | ||||
| Charge Current (Long Model) | 4A | ||||
| Re-Charge Time | 90% after 5 hours | 90% after 7 hours | |||
| FUNCTIONS | |||||
| Indications | Segment LCD, LED Indicators | ||||
| Alarms | Mains Failure, Battery Low, Over Load, UPS Common Fault (Audible) | ||||
| Communications | RS232, USB, EPO (Standard) SNMP, MODBUS, AS400 (Optional |
RS232 (Standard) EPO,SNMP,MODBUS,AS400 (Optional) |
|||
| Parallel Operation | N/A | 3 (Optional) | |||
| Maintenence Bypass | N/A | Optional | |||
| Frequency Converter Mode | N/A | YES (60% De-Rate) | |||
| ENVIRONMENTS & STANDARDS | |||||
| Operation Temperature | 0 ˚C- 40 ˚C | ||||
| Relative Humidity | <90% (Non condensing) | ||||
| Audible Noise | < 50 Db ( 1 meter away ) | ||||
| Ingress Protection | IP20 | ||||
| Operation Altitude | 0-1000m (After 1000m 1% power loss in each 100m) | ||||
| Standards | CE, IEC62040, IEC61000-4-2, IEC61000-4-3, IEC610004-4, IEC61000-4-5 | ||||
| PHYSICAL PROPERTIES | |||||
| Dimensions (W*D*H) | 144x224x325 | 190x323x368 | 248x500x616 | ||
| Net Weight (Kg) | 11 | 25 | 59 | 63 | |
| Gross Weight (kg) | 11,5 | 27 | 65 | 68 | |
* Our company has the right to change the model, visual and technical specification information of the products without prior notice.
Frequently asked questions
Answers taken from the EON 11 Series datasheet.
What models and power ratings does the ENCLOVE EON 11 Series UPS cover?
The EON 11 Series is listed in five model pairs: EON1101S/EON1101L at 1000VA / 900W, EON1102S/EON1102L at 2000VA / 1800W, EON1103S/EON1103L at 3000VA / 2700W, EON1106S/EON1106L at 6000VA / 5400W and EON1110S/EON1110L at 10000VA / 9000W.
What is the transfer time of the EON 11 Series online UPS?
The datasheet states BAT → INV = 0ms, INV → BYP = <4ms and ECOMODE BATTERY = 10ms. It also lists a Cold Start Function and an output waveform of Full Sİne Wave with ± % 1 voltage regulation.
Can the EON 11 Series UPS be used as a frequency converter, and does it run in parallel?
Frequency Converter Mode is listed as YES (60% De-Rate) on the 6000VA and 10000VA models and N/A on the 1000VA to 3000VA models. Parallel Operation is 3 (Optional) on the larger models and N/A on the smaller ones, with Maintenance Bypass likewise Optional on the larger models only.
What are the operating temperature, humidity and altitude limits of the EON 11 Series UPS?
Operation Temperature is 0 ˚C- 40 ˚C with Relative Humidity <90% (Non condensing) and Ingress Protection IP20. Operation Altitude is 0-1000m (After 1000m 1% power loss in each 100m), and audible noise is < 50 Db ( 1 meter away ).
What communication interfaces are available on the EON 11 Series UPS?
On the 1000VA to 3000VA models the standard interfaces are RS232, USB, EPO, with SNMP, MODBUS, AS400 optional. On the 6000VA and 10000VA models RS232 is standard and EPO, SNMP, MODBUS, AS400 are optional; the rear panel also carries a communication slot and an optional parallel port.
Which standards does the EON 11 Series UPS comply with?
The datasheet lists CE, IEC62040, IEC61000-4-2, IEC61000-4-3, IEC610004-4, IEC61000-4-5, and the key feature list states EMC and LVD Complied. A 2 Year Warranty is stated.
