UPS

COMMERCIAL UPS

Engineered for CRITICAL ESTABLISHMENTS

ENCLOVE Energy 10-200kVA online double-conversion UPS range is engineered and tested in-house to ensure absolute uptime for mission-critical commercial infrastructure. Optimized for hospitals, data centers, transportation, modern offices or any kind commercial establishments.

CLICK TO SEE THE PRODUCTS Request a quote
E-LN Series line interactive tower UPS with three status LEDs and a front power button
EON 11 Series single phase online tower UPS in three chassis sizes, each with an LED status panel and digital display
EON RT 11 Series convertible UPS shown standing upright as a tower and mounted horizontally in a rack, both with LCD control panels
EON 31 Series 3/1 phase online UPS towers in three cabinet sizes, each with an LCD status display showing output voltage
Product series
6
Models
38order codes
Datasheets
6PDF
Application sectors
2

The range

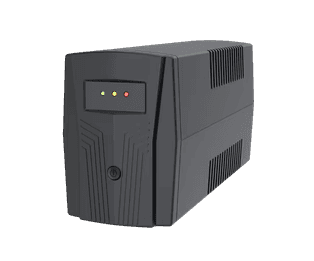

  • ENCLOVE E-LN Series line interactive UPS in a compact black desktop tower case with three status LEDs and a single power button on the front panel

    Commercial UPS

    E-LN Series

    Line Interactive Uninterruptable Power Supply

    Power Range
    650VA-2000VA
    Battery Voltage
    12-24VDC
    • Line Interactive
    • Elevator Saver
    • 1:1 Phase

    7 models Datasheet

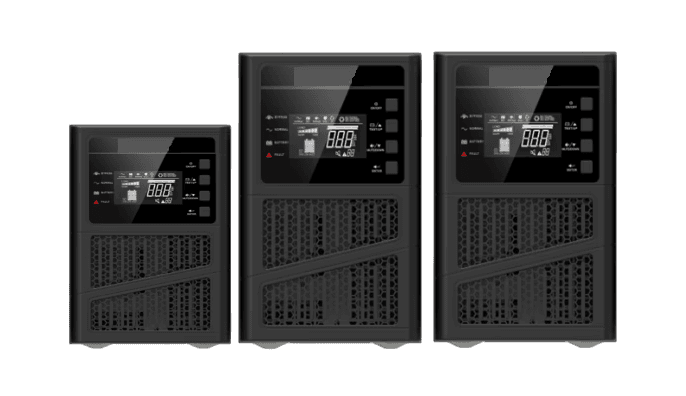

  • Three ENCLOVE EON 11 Series online UPS towers of increasing size in black, each with an LED status column, three-digit display, function keys and a ventilated lower panel

    Commercial UPS

    EON 11 Series

    Single Phase Tower Type Uninteruptable Power Supply

    Power Range
    1kVA-10kVA
    Battery Quantity
    2/4/6/16/20
    • Online Double Conversion
    • In-Built Battery
    • 1:1 Phase

    5 models Datasheet

  • EON RT 11 Series UPS shown in both orientations, standing upright as a tower on its stand and lying flat as a 19-inch rack mount unit, each with an LCD control panel

    Commercial UPS

    EON RT 11 Series

    Single Phase Tower Type Uninteruptable Power Supply

    Power Range
    1kVA-10kVA
    Height (U Size)
    2U/4U
    • Online Double Conversion
    • In-Built Battery
    • 1:1 Phase

    10 models Datasheet

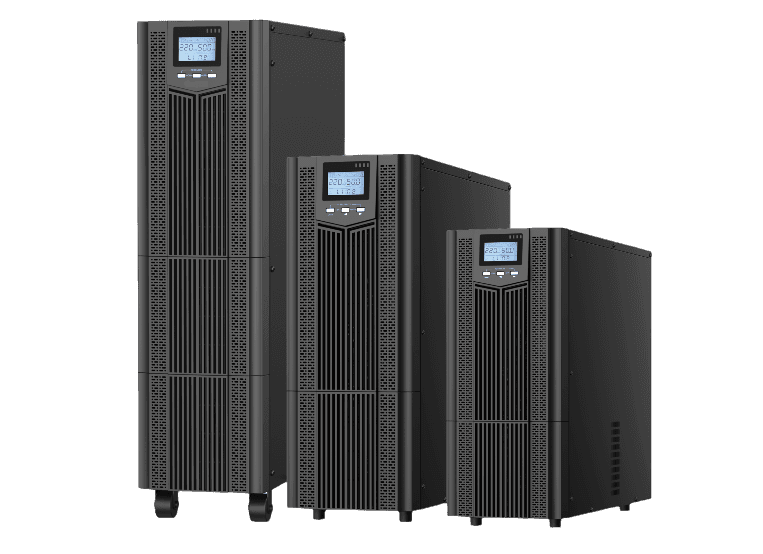

  • Three EON 31 Series tower UPS cabinets of increasing frame size, each with a backlit LCD control panel and full-height ventilation grilles on the front

    Commercial UPS

    EON 31 Series

    3:1 Phase Tower Type Uninterruptable Power Supply

    Power Range
    10kVA-20kVA
    DC Bus
    192-240VDC
    • Online Double Conversion
    • Phase Changer
    • 3:1 Phase

    6 models Datasheet

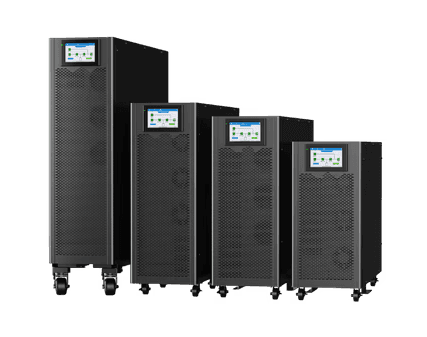

  • Four EON 33 Series three-phase tower UPS cabinets of descending height standing side by side, each with a colour touch panel LCD above a perforated ventilation door and castors at the base

    Commercial UPS

    EON 33 Series

    3:3 Phase Tower Type Uninterruptable Power Supply

    Power Range
    10kVA-60kVA
    Battery Quantity
    32 - 40 Blocks
    • Online Double Conversion
    • Touch Panel LCD
    • 3:3 Phase

    5 models Datasheet

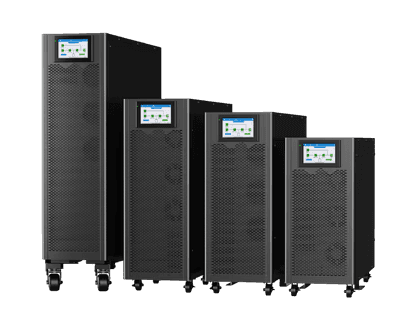

  • Four EON 33 Series three-phase tower UPS cabinets of descending height standing side by side, each with a colour touch panel LCD above a perforated ventilation door and castors at the base

    Commercial UPS

    EON 33 Series

    3:3 Phase Tower Type Uninterruptable Power Supply

    Power Range
    80kVA-200kVA
    Battery Quantity
    32 - 40 Blocks
    • Online Double Conversion
    • Touch Panel LCD
    • 3:3 Phase

    5 models Datasheet

Where these systems are used

Datasheets

One datasheet per series. Manuals, software and certificates are on each series page.

Frequently asked questions

Which commercial UPS series fits a single-phase load?

The E-LN series from 650VA to 2000VA, the EON 11 tower series and the EON RT 11 rack series, both 1kVA to 10kVA. All three are 1:1 phase.

Which series should I use on a three-phase supply?

The EON 31 series is 3:1 phase from 10kVA to 20kVA. The EON 33 series is 3:3 phase, covering 10kVA to 60kVA and 80kVA to 200kVA.

Is there a rack-mountable UPS?

The EON RT 11 series is rack and tower convertible, in 2U and 4U heights, from 1kVA to 10kVA.

Where are these systems typically installed?

Hospitals, data centers, transportation, modern offices and other commercial establishments.
