Commercial UPS

E-LN Series

Line Interactive Uninterruptable Power Supply

Line Interactive
Elevator Saver
1:1 Phase
Up to 2kVA
LED/LCD HMI

The E-LN Series of ENCLOVE is a cutting-edge Line-Interactive UPS solution designed to safeguard your critical electronics against power outages, voltage fluctuations, and surges. With sleek design, quiet operation, and intelligent features like overload protection and smart charging, the E-LN Series delivers efficient, cost-effective, and dependable backup power when you need it most.

Request a quote Datasheet PDF, 0.8 MB

ENCLOVE E-LN Series line interactive UPS in a compact black desktop tower case with three status LEDs and a single power button on the front panel

Transfer Time: < 8-10ms
Input Voltage Range: 162 - 295VAC
Re-Charge Time: 6-8 hoursto 90% Capacity
Audible Noise: < 45 Db( 1 meter away )

Product Overview

The E-LN Series is engineered for applications where energy efficiency and reliable voltage stabilization are important. Its advanced line-interactive architecture utilizes Automatic Voltage Regulation (AVR) to correct utility fluctuations in real-time, ensuring a stable, high-quality power supply for sensitive business and IT infrastructure. This design provides a robust defense against common power disturbances while optimizing performance and longevity for modern office environments.

By combining a lower initial investment with reduced long-term maintenance, the E-LN Series delivers a superior total cost of ownership without compromising on Enclove’s signature reliability.

Technical Highlights

Easily readible & understandable alarm LED system
Simulated Sinewave output waveform
Short circuit and over current protection
Battery deep discharge protection
Automatic frequency setting
Shutdown during unloaded operation on Battery Mode
Self Test on initial operation
RS232/USB/LCD Panel optionaly availble

IDEAL FOR PC AND SMALL SERVERS

SEAMLESS TRANSFER ENSURES YOUR PCS AND SERVER STAY ACTIVE
HIGH POWER DENSITY

COMPACT UNITS ENSURES TO STORE IT IN ANY LOCATION
FUNDAMENTALPROTECTIONS

SHORT CIRCUIT, OVER CURRENT BATTERY DISCHARGE PROTECTION
ONE BUTTON CONTROL

EASY CONTROL AND ON/OFF OVER SINGLE BUTTON CONTROL

Key features

Wide Input Voltage Range

(170 ~280V)

Cold Start

(Start from battery without mains)

Output Power Factor

0,6

Microprocessor Digital Control

Smart Battery Control System

Auto Battery Charge on Off Mode

Technical specifications

The table below reproduces the E-LN Series datasheet specifications for all seven models, E-LN600 through E-LN2000.

E-LN600

POWER (VA)
600VA

POWER (VA)
360W

Enquire
E-LN650

POWER (VA)
650VA

POWER (VA)
390W

Enquire
E-LN850

POWER (VA)
850VA

POWER (VA)
510W

Enquire
E-LN1000

POWER (VA)
1000VA

POWER (VA)
600W

Enquire
E-LN1200

POWER (VA)
1200VA

POWER (VA)
720W

Enquire
E-LN1500

POWER (VA)
1500VA

POWER (VA)
900W

Enquire
E-LN2000

POWER (VA)
2000VA

POWER (VA)
1200W

Enquire

E-LN Series technical specifications, compared across 7 models.
Model	E-LN600	E-LN650	E-LN850	E-LN1000	E-LN1200	E-LN1500	E-LN2000
POWER (VA)	600VA	650VA	850VA	1000VA	1200VA	1500VA	2000VA
POWER (VA)	360W	390W	510W	600W	720W	900W	1200W
INPUT
Voltage	220 / 230 / 240 VAC
Voltage Range	162 - 295 VAC
Frequency	50 / 60Hz Auto Sensing
OUTPUT
Voltage Regulation	± % 10 ( Operation from Battery )
Frequency	50 / 60 Hz. ± 1 Hz.
Waveform	Simulated Sine Wave
Output Power Factor	0.6
Transfer Time	< 8-10 ms
Output Socket Quantity	2			3			2
BATTERY
Battery Voltage	12 VDC			24 VDC
Battery Quantity	1			2
Battery Type	12VDC 7Ah		12VDC 9Ah	12VDC 7Ah		12VDC 9Ah
Re-Charge Time	6-8 hours to 90% Capacity
Battery Protection	Overload, Short Circuit, Battery Deep Discharge, Over Charge Protection
Battery Management	YES
FUNCTIONS
Indications	Green LED - Mains Normal / Amber LED - Operation from Battery / Red LED - UPS Malfunction
Alarms	Operation from Battery, Audible Alarm @ Battery Low and Overload
Short Circuit Protection	AC Fuse, Electronic Protection while Mains OK / Electronic Protection while Mains OFF
Voltage Regulation	2-Step Increase & AVR Function
Cold Start	YES
ENVIRONMENTS & STANDARDS
Operation Temperature	0 ˚C- 40 ˚C
Audible Noise	< 45 Db ( 1 meter away )
Standards	IEC 62040-1 / IEC 62040-2
PHYSICAL PROPERTIES
Dimensions (WDH)	100x280x142			136x328x186
Packed Dimensions (WDH)	139x325x210			185x374x269
Net Weight (kg)	5,2		8,8	9,4			10,2
Gross Weight (kg)	5,5		9,4	10			10,8

* Our company has the right to change the model, visual and technical specification information of the products without prior notice.

Where the E-LN Series is used

Datacenters & Telco Infrastructure MODULAR, HOT SWAP AND EASILY MAINTAINABLE UNITS

Frequently asked questions

Answers taken from the E-LN Series datasheet.

What power ratings does the ENCLOVE E-LN Series UPS cover?

The E-LN Series datasheet lists seven models: E-LN600, E-LN650, E-LN850, E-LN1000, E-LN1200, E-LN1500 and E-LN2000. They run from 600VA / 360W up to 2000VA / 1200W.

What is the transfer time of the E-LN Series line interactive UPS?

Transfer time is < 8-10 ms. The output waveform is a Simulated Sine Wave with an output power factor of 0.6.

What input voltage and frequency range does the E-LN Series UPS accept?

Input voltage is 220 / 230 / 240 VAC with a voltage range of 162 - 295 VAC. Input frequency is 50 / 60Hz Auto Sensing, and voltage regulation is by 2-Step Increase & AVR Function.

What is the operating temperature range and noise level of the E-LN Series UPS?

Operation temperature is 0 ˚C- 40 ˚C and audible noise is < 45 Db ( 1 meter away ).

Which standards does the ENCLOVE E-LN Series UPS comply with?

The datasheet states IEC 62040-1 / IEC 62040-2, and the document carries the CE mark.

Does the E-LN Series UPS offer USB or RS232 communication?

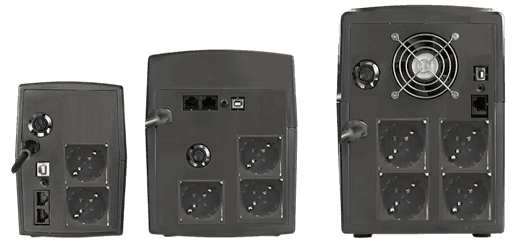

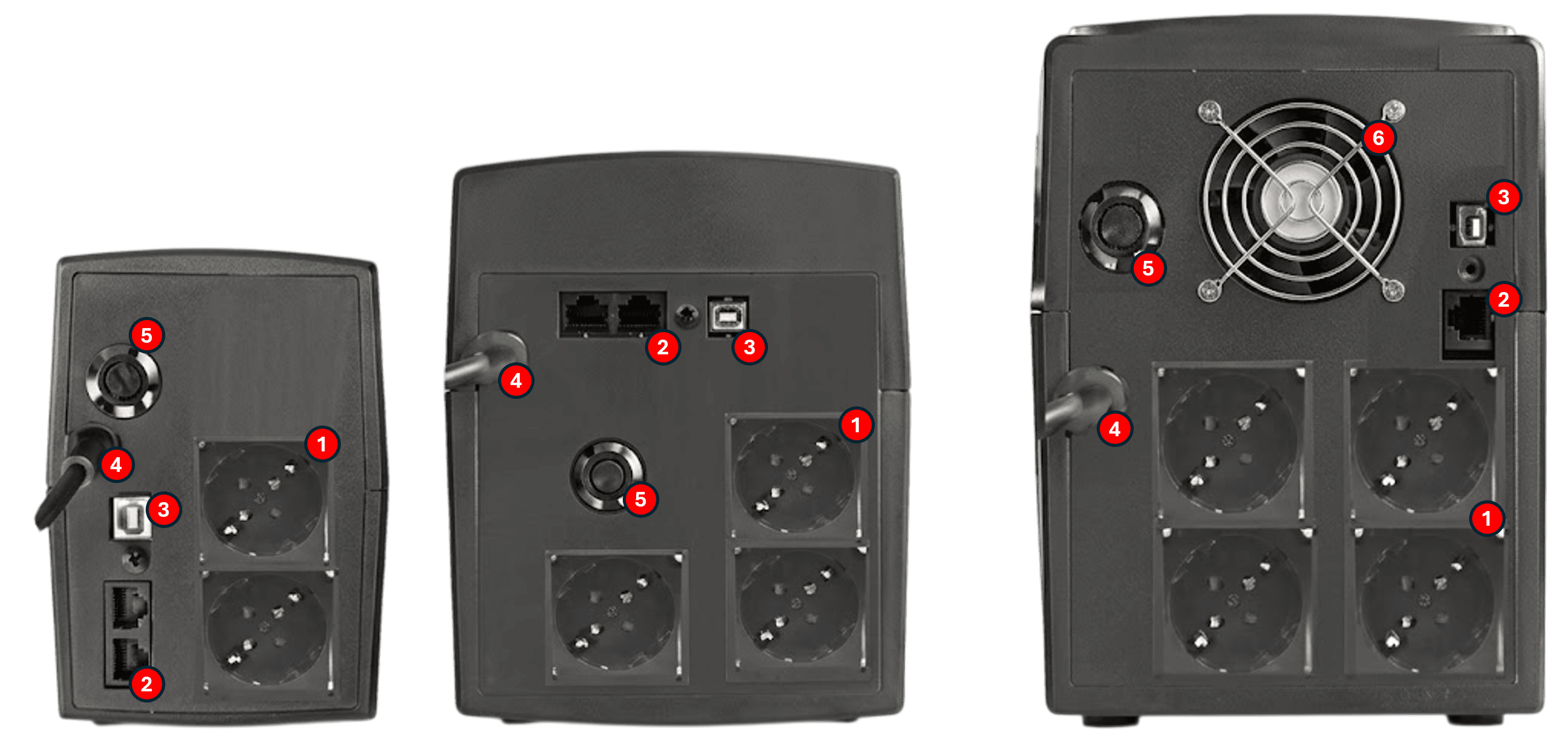

RS232 and USB Communication Port are optional, and the rear panel details list USB (OPTIONAL) alongside TEL/MODEL/FAX PROTECTION (OPTIONAL). The control panel is an LED Control Panel, with LCD optional.
