True Online Double Conversion
Continuous double-conversion; load is always running on inverter output — no switching transients ever reach the load.

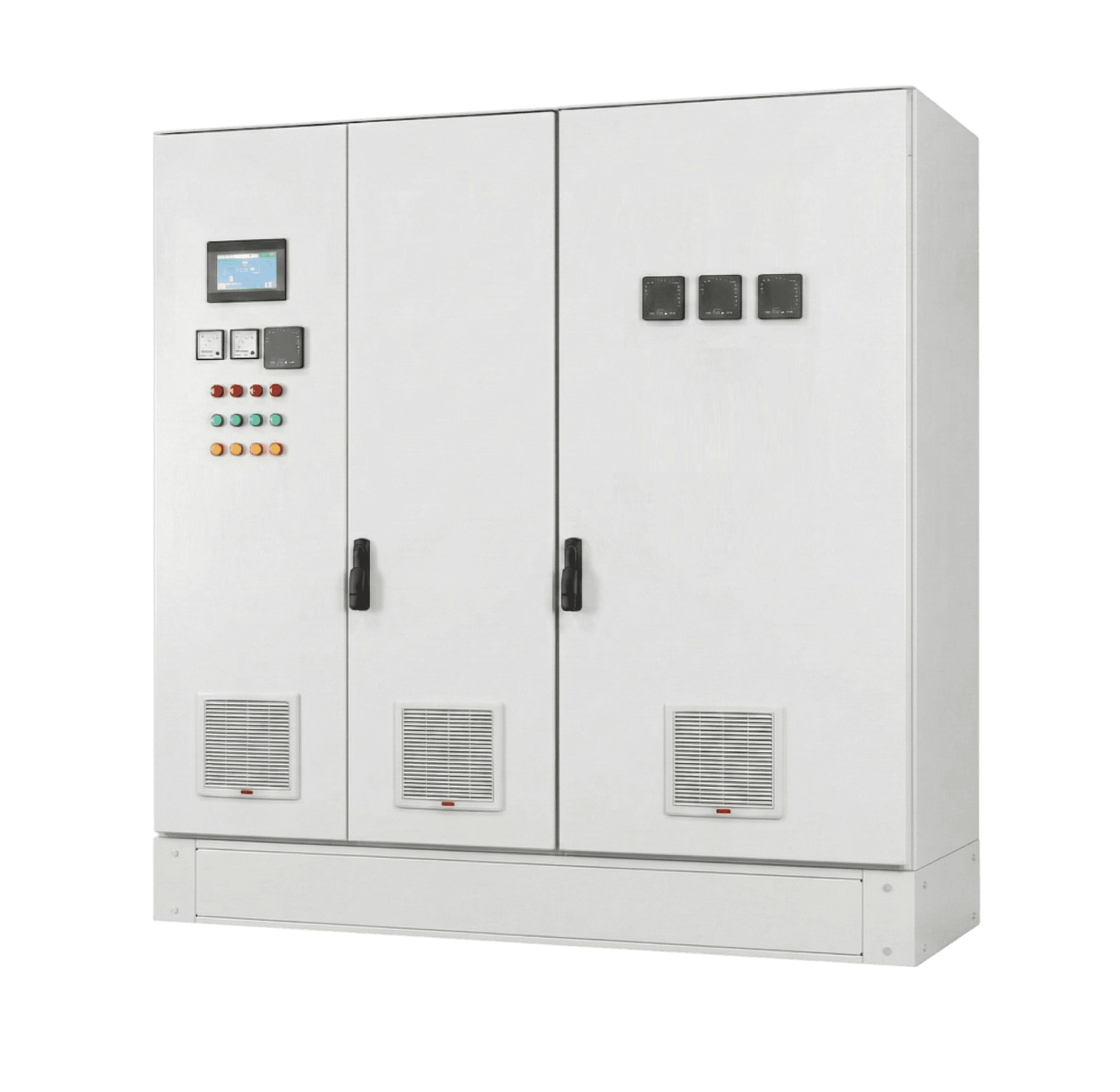

Industrial UPS
LEON-A Series
Uninterruptable Power Supplies
Industrial Uninterruptable Power Supply
- Online Double Conversion
- Galvanized Isolation
- 1:1 Phase
- 3:1 Phase
- 3:3 Phase
ENCLOVE Energy LEON-A UPS Series is specifically engineered to provide unwavering power security for the most demanding factory and infrastructure environments. Unlike standard commercial units, these systems feature a rugged built-in isolation transformer that creates a complete galvanic barrier between the utility input and your sensitive industrial loads.
- Power range
- 10–500kVA
- Battery voltage
- 110 / 220 / 384VDC
- Output THDu
- 2% linear load
- Design life
- +25years
Product Overview
When absolute reliability is non-negotiable, the ENCLOVE LEON-A Series Industrial UPS stands as the definitive choice for securing your infrastructure. Custom-engineered in-house for a +20-year design life, the LEON-A Series combines true online double-conversion technology with exceptional fault-clearing capabilities to deliver uncompromising, pure sine-wave AC power under any condition.
Its industrial-grade architecture easily handles highly inductive or non-linear loads while shielding your equipment from devastating voltage spikes and input harmonics. By choosing the LEON-A Series, you are investing in a tailored, highly resilient energy solution backed by elite engineering expertise, ensuring your power plants, marine vessels, or automated production lines remain permanently online and fully protected.
Technical Highlights
- Online double-conversion topology; IEC 62040-3 Class VFI
- Pure sine wave output (THD < 2 % at linear load)
- Output frequency synchronisation: 40–70 Hz tracking range
- Automatic restart on mains restoration
- Generator-compatible with frequency-tracking mode
- Cold-start capability (bypass not required)
- Maintenance bypass for servicing without load interruption
- Compliant with CE, IEC 62040-1/2/3, EN 50091
-
Resistant to all transients
Reliable operation under all unstable conditions.
-
Full galvanic isolation
Full isolation between input & output with Al or Cu tranformers.
-
Full front access
Easy maintenance and repair. All components accesible from front.
-
Secure ventilation
Ventilation failure is secured with dual fans and fan failure alarm.
KEY FEATURES
Engineered For ZERO COMPROMISE
All Battery Suitable
Suitable for all kind of batteries including VRLA, OPzS, OPzV, NiCad, Lithium. Charge Functions are configurable.
Seamless Bypass Transfer
Instantaneous failover with no break in output voltage, even during deep sags and sudden mains loss.
ModBus & Remote Comms.
RS-232, dry-contact relay standard. Optional TCP/IP, RS485 with ModBus protocol. Comply for SCADA comms.
LCD Touch Display
Full-colour touchscreen shows input/output voltage, load %, battery state, event log, and configuration menu.
Wide Input Range
Wide input range ensures loads are fed with a stable voltage even in sags, spikes and surges. Full protection
Infrastructure Friendly
12-pulse topology reduces the Input THDi and increases the Input Power Factor.
Variaty of Applications
400Hz option makes is suitable for Marine and Military Applications.
Buy & Forget
Uncompetable +25 Design life allow super long term operations for facilities.
Technical specifications
Full published data for all three LEON-A models, reproduced from the LEON-A Series datasheet. Options are marked as such; anything not listed is available on request.
-
GPL11000
- Input/Output Phase
- 1:1 Phase
- Rated Power
- Max 40kVA
-
GPL31000
- Input/Output Phase
- 3:1 Phase
- Rated Power
- Max 200kVA
-
GPL33000
- Input/Output Phase
- 3:3 Phase
- Rated Power
- Max 500kVA
| Model | GPL11000 | GPL31000 | GPL33000 |
|---|---|---|---|
| Input/Output Phase | 1:1 Phase | 3:1 Phase | 3:3 Phase |
| Rated Power | Max 40kVA | Max 200kVA | Max 500kVA |
| INPUT | |||
| Mains & Bypass Voltage | 110VAC / 115VAC / 120VAC 220VAC / 230VAC / 240VAC (Others Optional) |
3x190VAC / 3x200VAC / 3x210VAC 3x380VAC / 3x400VAC / 3x415VAC / 3x440VAC / 3x460VAC / 3x600VAC (Others Optional) |
|
| Mains Voltage Range | ±10% (±15% / ±20% Optional) | ||
| Wiring | 3W (P+N+PE) | 5W (3P+N+PE) | |
| Frequency | 50Hz, 60Hz or 400Hz (±10%)w | ||
| Rectifier Type | Full Bridge | 6 Pulse / 12 Pulse | |
| THDu | 30% (12% with 12 Pulse Rectifier / 5% with Input Filter) | ||
| OUTPUT | |||
| Output Voltage | 110VAC / 115VAC / 120VAC 220VAC / 230VAC / 240VAC (Others Optional) |
3x190VAC / 3x200VAC / 3x210VAC 3x380VAC / 3x400VAC / 3x415VAC / 3x440VAC / 3x460VAC / 3x600VAC (Others Optional) |
|
| Frequency | 50Hz, 60Hz or 400Hz (±10%)w | ||
| Power Factor | 0.8 (1.0 Optional) | ||
| THDu | 2% (linear load) | ||
| Crest Factor | 3:1 | ||
| Recovery Time | 25ms (to within 1%) | ||
| Overload | 110% Load - Continuous / 110-125% Load - 10mins / 125-150% Load - 1min | ||
| Isolation | Galvanic Isolation Transformer - Output (Bypass & Input Isolation Optional) | ||
| BATTERY CHARACTERISTICS | |||
| Battery Type | VRLA / OPzV / OPzS / NiCad / AGM | ||
| Battery Voltage | 110VDC / 220VDC / 384VDC | ||
| Battery Charge Voltage | VRLA / OPzV / OPzS: 2,23VDC to 2,35VDC (Float) – 2.40VDC (Boost/Equalize) per cell (Adjustable) Ni-Cd: 1,42VDC (Float) – 1,47VDC to 1,7VDC (Boost/Equalize) per cell (Adjustable) |
||
| Battery Charge Current | VRLA / OPzV / OPzS: 10-15% Current of Battery Capacity (Adjustable) Ni-Cd: 20% Current of Battery Capacity (Adjustable) |
||
| Boost Charge Timer | 0-20 Hours (Adjustable) | ||
| PHYSICAL CHARACTERISTICS | |||
| Cabinet Type | Tower | ||
| Cabinet Color | RAL7032, RAL7035 (Others Optional) | ||
| Ingress Protection | IP20 (up to IP55 - Optional) | ||
| Cooling System | Fan Forced Cooling (Natural Cooling, Water Cooling, Smart Fans Optional | ||
| Cable Entry | Bottom (Others Optional) | ||
| ENVIRONMENTAL CHARACTERISTICS | |||
| Storage Temperature | -25 to 70°C | ||
| Operating Temperature | -10 to 50°C | ||
| Relative Humidity | 0 to 95% (Non-Condensing) | ||
| Operating Altitude | 1000m from MSL (1% derate each 100m after 1000m) | ||
| Acoustic Noise | 55dB to 85dB | ||
| COMMUNICATIONS | |||
| Standard Communications | ModBus RTU RS232 (OPT: RS485, ModBus TCP/IP, SNMP and IEC61850), Dry Contact x4 (OPT: to x16) | ||
| Parallel Operation | Up to 4 Units (Dual Redundant or Capacity) | ||
| HMI | LED/LCD Panel (OPT: Touch Screen Panel, Mimic Panel) | ||
| Languages | Turkish, English, German, Dutch, Portuguese, Spanish, Russian | ||
| FEATURES | |||
| Protections | Temperature Compensated Charge / LVD / Battery Current Limit MCB or MCCB for Input, Output and Battery, Line Failure, DC & Battery Low-High Alarm, Output Current Limiting DC Earth Fault, Over Temperature, Load on Battery, Charger Failure, Emergency Stop |
||
| STANDARDS | |||
| EN 62040-1 | General and Safety Requirements for UPS | ||
| EN 62040-2 | Electromagnetic Compatibility (EMC) Requirements fo UPS | ||
| ISO14001 - ISO9001 | Quality Assurance | ||
* Our company has the right to change the model, visual and technical specification information of the products without prior notice.
Where the LEON-A Series is used
The LEON-A is specified across the sectors ENCLOVE serves. Each sector page lists the full equipment range for that environment.
- Oil & Gas – Off Shore Platforms RESISTANT AND CORROSION PROTECTED UNITS
- Shore Power and Marine Vessels RUGGED AND SHOCK RESISTANT UNITS
- Power Plants and Industrial Zones +25 YEARS OPERATING UNITS IN HARSH CONDITIONS
- Datacenters & Telco Infrastructure MODULAR, HOT SWAP AND EASILY MAINTAINABLE UNITS
- Special Applications REGENERATIVE RESISTANT AND CUSTOM FIT UNITS
Frequently asked questions
Answers taken from the LEON-A Series datasheet.
What kVA sizes does the ENCLOVE LEON-A Series industrial UPS come in?
The LEON-A Series is built in three models: the GPL11000 (1:1 phase) up to a maximum of 40 kVA, the GPL31000 (3:1 phase) up to 200 kVA, and the GPL33000 (3:3 phase) up to 500 kVA. The single-phase model is wired 3W (P+N+PE); the three-phase models are wired 5W (3P+N+PE).
Which battery types does the LEON-A UPS support?
The LEON-A supports VRLA, OPzV, OPzS, NiCad and AGM batteries, at 110 VDC, 220 VDC or 384 VDC. Charge settings are adjustable per chemistry: 2.23–2.35 VDC float and 2.40 VDC boost/equalize per cell for VRLA/OPzV/OPzS, and 1.42 VDC float with 1.47–1.7 VDC boost/equalize per cell for Ni-Cd. Charge current is 10–15% of battery capacity for VRLA/OPzV/OPzS and 20% for Ni-Cd, with a 0–20 hour adjustable boost charge timer.
Is a 400 Hz output available on the LEON-A industrial UPS, and what is it used for?
Yes — input and output frequency can be 50 Hz, 60 Hz or 400 Hz (±10%). The datasheet states the 400 Hz option makes the unit suitable for marine and military applications.
What is the operating and storage temperature range of the LEON-A Series UPS?
The LEON-A operates from -10 to 50°C and can be stored from -25 to 70°C, at 0 to 95% relative humidity (non-condensing). Rated operating altitude is 1000 m from MSL, with a 1% derate for each 100 m above that.
Can LEON-A UPS units be paralleled, and how many?
Yes — up to 4 units can be run in parallel, configured either as dual redundant or for added capacity.
What is the difference between the 6-pulse and 12-pulse rectifier options on the LEON-A UPS?
The three-phase LEON-A models can be specified with a 6-pulse or 12-pulse rectifier, while the single-phase GPL11000 uses a full-bridge rectifier. The datasheet quotes input THDu of 30% as standard, 12% with the 12-pulse rectifier and 5% with an input filter, and states that the 12-pulse topology reduces input THDi and increases input power factor.
