High Efficiency
High efficiency power conversion
Frequency Converter
PROTEUS Series
Frequency Converters
Marine Type Modular Frequency Converters
- Modular Structure
- Bi-Directional Energy Flow
- Easy Maintenance
- 100kVA per Module
- 50/60/400Hz
ENCLOVE Energy Marine Type PROTEUS Series Frequency Converter system allows power systems that require 60Hz or 400Hz power to be fed from 50Hz networks or systems that require 50Hz or 400Hz supply to be fed from 60Hz networks. In addition, it is also used to meet the different voltage standards required by the loads.
- Power range
- 40 kVA to 40 MVA
- Efficiency (50/60Hz)
- >96% without isolation transformers
- Input power factor
- > 0.99
- Operating temperature
- 0 – 50°C
Product Overview

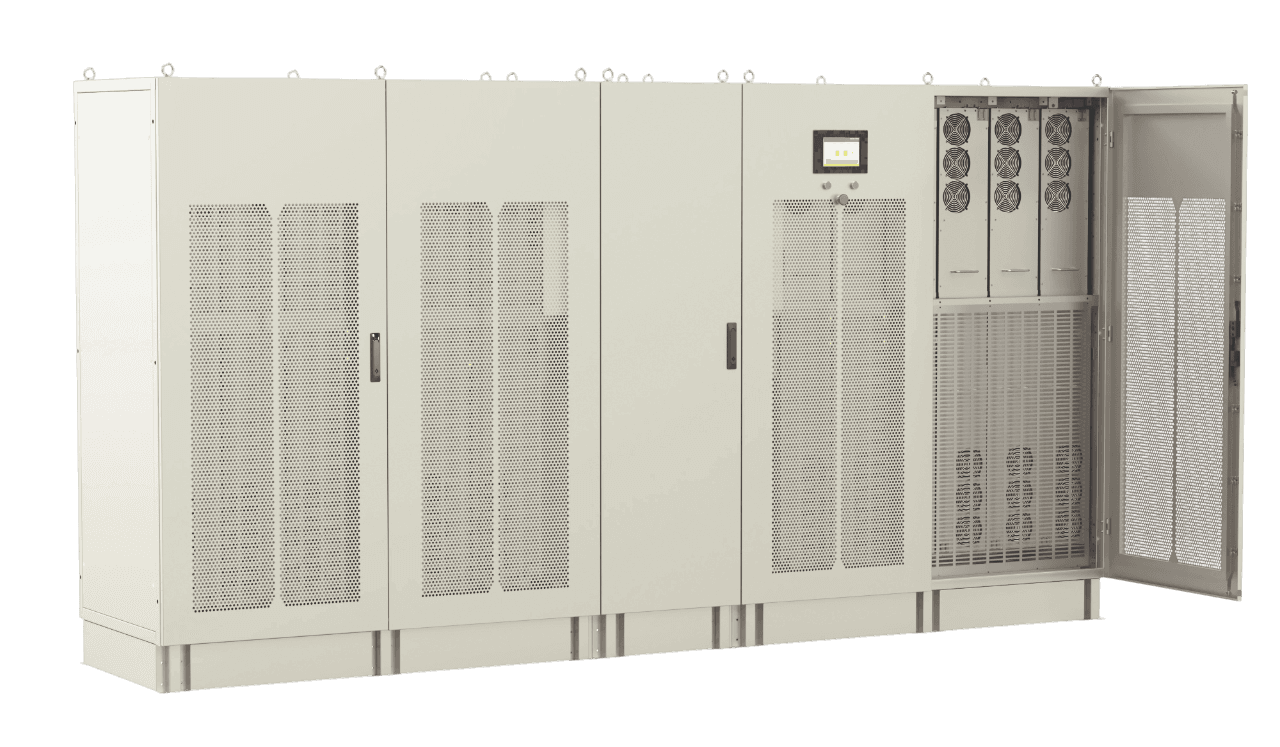

The Marine Type PROTEUS Frequency Converter system consists of one or more rectifier and inverter modules, which consist of power electronics components with a modular structure. The system has a double conversion structure and first converts the AC voltage to filtered DC voltage with the rectifier module, then the inverter module converts this filtered DC voltage to the AC frequency and voltage standard that the load needs.
PROTEUS Series can operate in parallel with different voltage sourcessuch as generators and other SFCs. Load sharing is done without the need for any communication, thanks to its programmable droop control feature.
Technical Highlights
- By parallel connection up to 40MVA can be supplied.
- High power factor with regenerative power and PWM rectifier structure with low current IGBT
- High reliability operation due to the modular structure and spare module.
- Fully isolated output with optional output transformer
- Load sharing with SFCs of different power and generators
- Bi-directional working due to four quadrant operation without any problem and feeding to the mains. Power can always flow to both directions.
- Enhanced mechanical durability with optional vibration absorber pads
- Touchscreen with color graphic display
-
MARINE TYPE
APPROVED WITH MARINE CERTIFICATIONS AND MARINE COMPONENTS
-

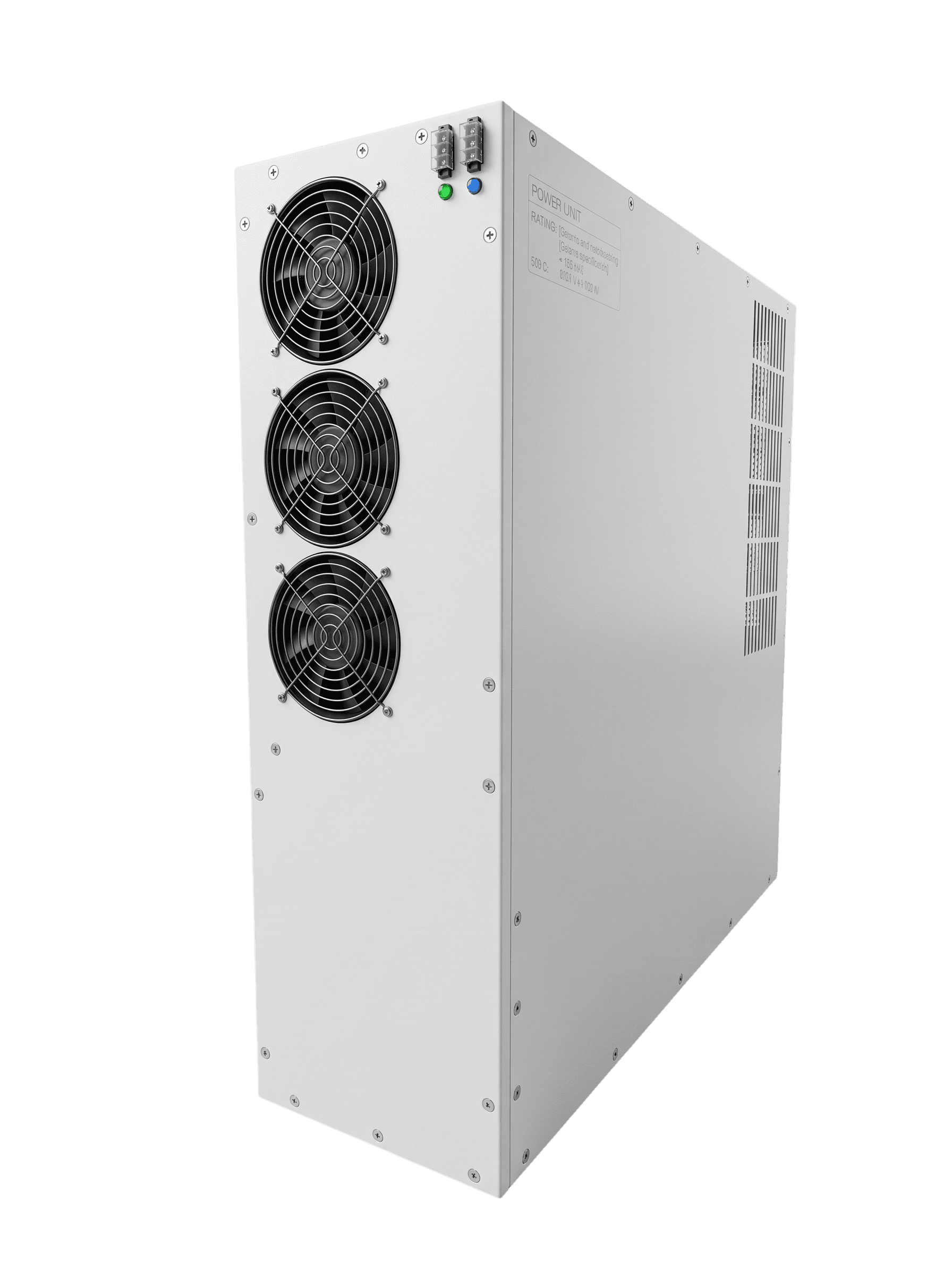

MODULAR STRUCTURE
SEPERATE RECTIFIER AND INVERTER MODULES ENSURES EASY REPAIR
-
USER FRIENDLY HMI
ALL PARAMETERS MONITORABLE OVER USER FRIENDLY TOUCH PANEL
-
SHOCK & VIBRATION RESISTANT
RUGGED STRUCTURE RESISTANT TO STRONG SHOCKS AND VIBRATIONS (OPTIONAL VIBRATION ABSORBER PADS)
Key features
Clean Sinusoidal Output
Output voltage in clean and full sinusoidal waveform
Wide Input Range
50/60Hz wide input voltage range
Communication Options
Wide range of communication options
Voltage Drop Compensation
Output cable voltage drop compensation
Uninterrupted Load Transfer
Uninterrupted load transfer between sources
Technical specifications
The tables below are reproduced from the PROTEUS Series datasheet and cover two configurations of the same 40kVA - 40MVA range: the 50/60Hz output model (PTS1) and the 400Hz output model (PTS4).
-
50 / 60 Hz
- POWER RANGE
- 40kVA - 40MVA
- MODEL NAME
- PTS-XPXXXNI-XPXXXNI-XXK-XXX-XXX
-
400 Hz
- POWER RANGE
- 40kVA - 40MVA
- MODEL NAME
- PTS-XPXXXNI-XPXXXNI-XXK-XXX-XXX
| Frequency | 50 / 60 Hz | 400 Hz |
|---|---|---|
| POWER RANGE | 40kVA - 40MVA | |
| MODEL NAME | PTS-XPXXXNI-XPXXXNI-XXK-XXX-XXX | |
| INPUT | ||
| Voltage | 380 – 480V ±10% (different input voltages with input transformer) | |
| Maximum Supply Voltage | ±10% | |
| Nominal Input Frequency | 50/60 Hz | |
| Frequency Tolerance | ±15Hz | |
| Input Connection | 3P or 3P+N (with or without neutral) | |
| Overvoltage Category | III | |
| Current Harmonic | <3% THDi (at nominal load) | |
| Power Factor | > 0.99 | |
| OUTPUT | ||
| Power | 40 kVA to 40 MVA | |
| Power Factor | 0.9 | |
| Voltage | 380 – 480V (Different output voltages with output transformer) | 115VAC/440VAC ±%1 (3 PHASE)(MIL-STD-1399 (Tip III) compliance for marine applications) |
| Frequency | 50 or 60Hz (More different frequency options on order) | 400Hz ±%0.1 (MIL-STD-1399 (Tip III) compliance for marine applications) |
| Voltage Harmonic | <2.5% THDv (at linear load) | |
| Overload Capacity | 10 mins. @ <120% Load 30 sec. @ <150% Load |
|
| Short Circuit Rating | 2 sec. @ 200% Load | |
| Crest Factor | 3:1 | |
| Static Voltage Sensitivity | ±1% | |
| Frequency Sensitivity | ±0.1% | |
| Efficiency | >96% (without isolation transformers) | >93% |
| GENERAL | ||
| Cabinet Type | Standalone | |
| Cabinet Color | RAL7032, RAL7035 (Others Optional) | |
| Ingress Protection | IP20 (up to IP55 - Optional) | |
| User Panel | 7 inch. Toucpanel with colour TFT | |
| Operating Temperature | 0 – 50°C | |
| Cooling Type | Forced Air Cooling with a fan that speed is adjusted according to the load Optional (Liquid cooling 6lt/min flow rate per 100kw. Non corrosive coolant 0 – 40°C) |
|
| Temperature De-Rating | 2% power loss per 1°C up to 50°C above 40°C. | |
| Operating Altitude | 1% power loss for every 100m up to 2000m over 1000m | |
| Humidity | <95% without condensation | |
| Acousitic Noise | 65-75 dBA | |
| Standards (General) | ISO 9001, ISO 14001, ISO 45001, IEC62103 / EN50178; CE | |
| Standards (Marine) | Marine Certificates on Request (BV, DNV GL, ABS, RINA, CCS, LR) | |
| Standards (Military) | — | MIL-STD-167-1 Standard Compliance / MIL-T-17221B & VDE530 Standard Compliance / MIL-STD-461E Compliance |
| Dimensions | Contact Us For Dimensions | |
| Others | Cabinet Heater, Cabinet Lighting, Service Plug | |
* Our company has the right to change the model, visual and technical specification information of the products without prior notice.
Where the PROTEUS Series is used
Frequently asked questions
Answers taken from the PROTEUS Series datasheet.
What power range does the ENCLOVE PROTEUS Series marine frequency converter cover?
The PROTEUS Series covers 40kVA to 40MVA. The datasheet states that by parallel connection up to 40MVA can be supplied, and the output power factor is 0.9.
Can the PROTEUS Series frequency converter feed power back to the mains?
Yes. The datasheet lists "Bi-directional working due to four quadrant operation without any problem and feeding to the mains. Power can always flow to both directions." It can also operate in parallel with different voltage sources such as generators and other SFCs, and load sharing is done without the need for any communication thanks to its programmable droop control feature.
Does the PROTEUS Series have a 400Hz output option for marine and military applications?
Yes — a separate 400Hz specification table gives an output of 400Hz ±%0.1 at 115VAC/440VAC ±%1 (3 PHASE), both noted as MIL-STD-1399 (Tip III) compliance for marine applications, at >93% efficiency. That model also lists MIL-STD-167-1 Standard Compliance / MIL-T-17221B & VDE530 Standard Compliance / MIL-STD-461E Compliance.
What are the operating temperature, humidity and altitude limits of the PROTEUS Series?
Operating temperature is 0 – 50°C and humidity is <95% without condensation. Temperature de-rating is 2% power loss per 1°C up to 50°C above 40°C, and operating altitude de-rating is 1% power loss for every 100m up to 2000m over 1000m. Ingress protection is IP20, up to IP55 optional.
How is the PROTEUS Series monitored, and what communication options are available?
The unit carries a 7 inch. Toucpanel with colour TFT, and the datasheet states all parameters are monitorable over the user friendly touch panel. A wide range of communication options is listed among the main features; the datasheet does not name the individual protocols.
Which standards and marine certificates apply to the PROTEUS Series frequency converter?
General standards are ISO 9001, ISO 14001, ISO 45001, IEC62103 / EN50178; CE. Marine certificates are available on request (BV, DNV GL, ABS, RINA, CCS, LR).
